ACMC105
- Interface to Mitsubishi air conditions
- Potential free contacts control
- Temperature setup 0-10V, 4-20mA
- DIN rail mount
- Current state indication

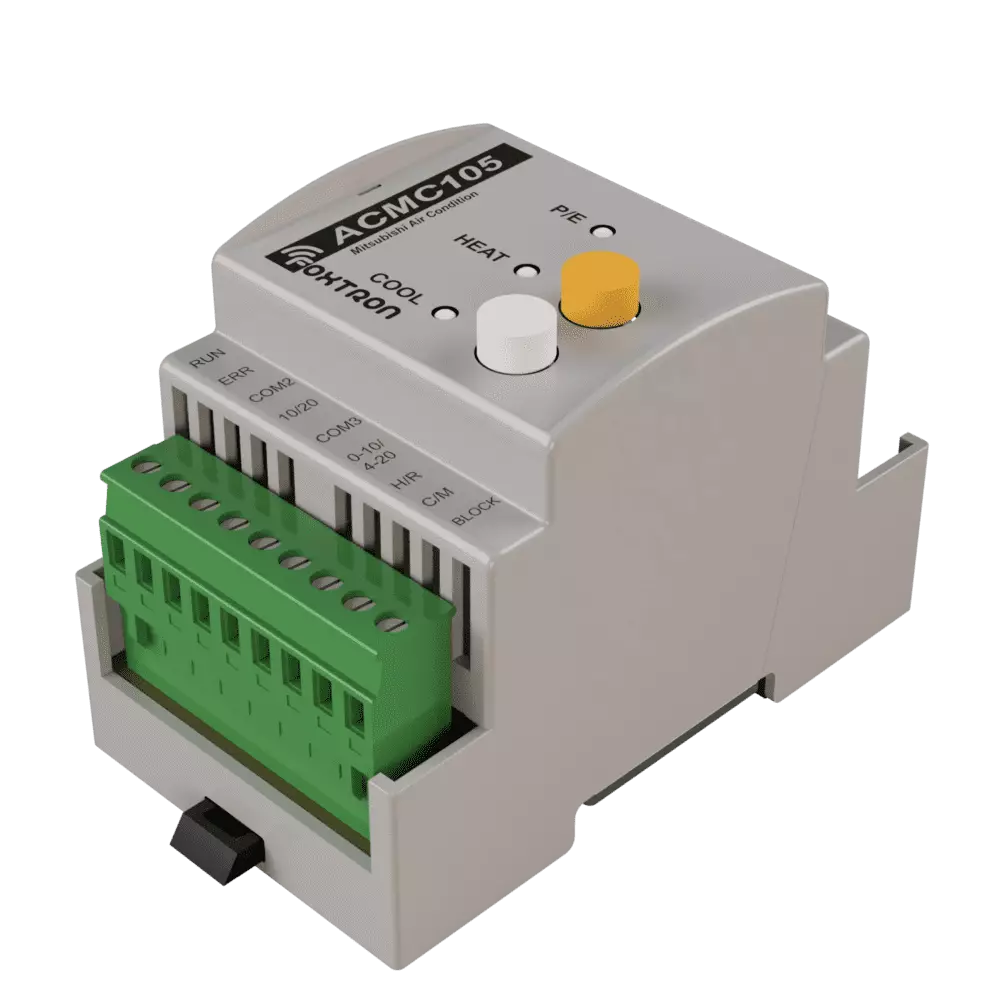

Mitsubishi aircondition interface ACMC105

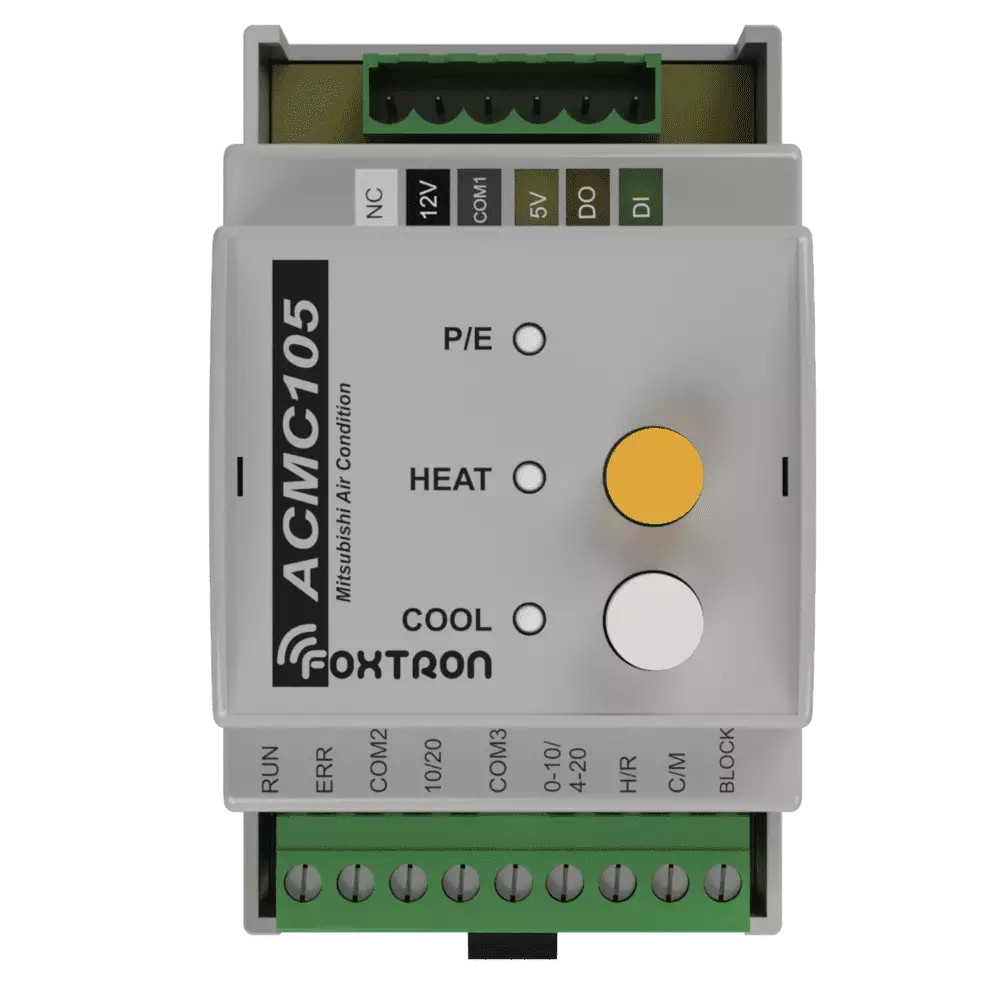

ACMC105 serves to convert standard analog signals used for setup control elements in heating, ventilating, and air conditioning (HVAC). On the base of binary imputs it allows to switch AC unit regimes (heat/cool). Based on the voltage or current value on the analog input, it allows to set the temperature on which the AC should heat or cool. Thanks to the universal nature of this input the temperature can be adjusted by active or passive current source 4-20mA or by potentiometr. Each input and output functions can be changed by DIP switches located under the front panel of the unit. For indication of the AC´s operational status serves three LED on the front panel of the unit. To easy test of the communication press one of the buttons located on the front panel. It works only if HVAC control is disconnected.
Download
 |
User manual |
|
ACMC105_Datasheet.pdf |
