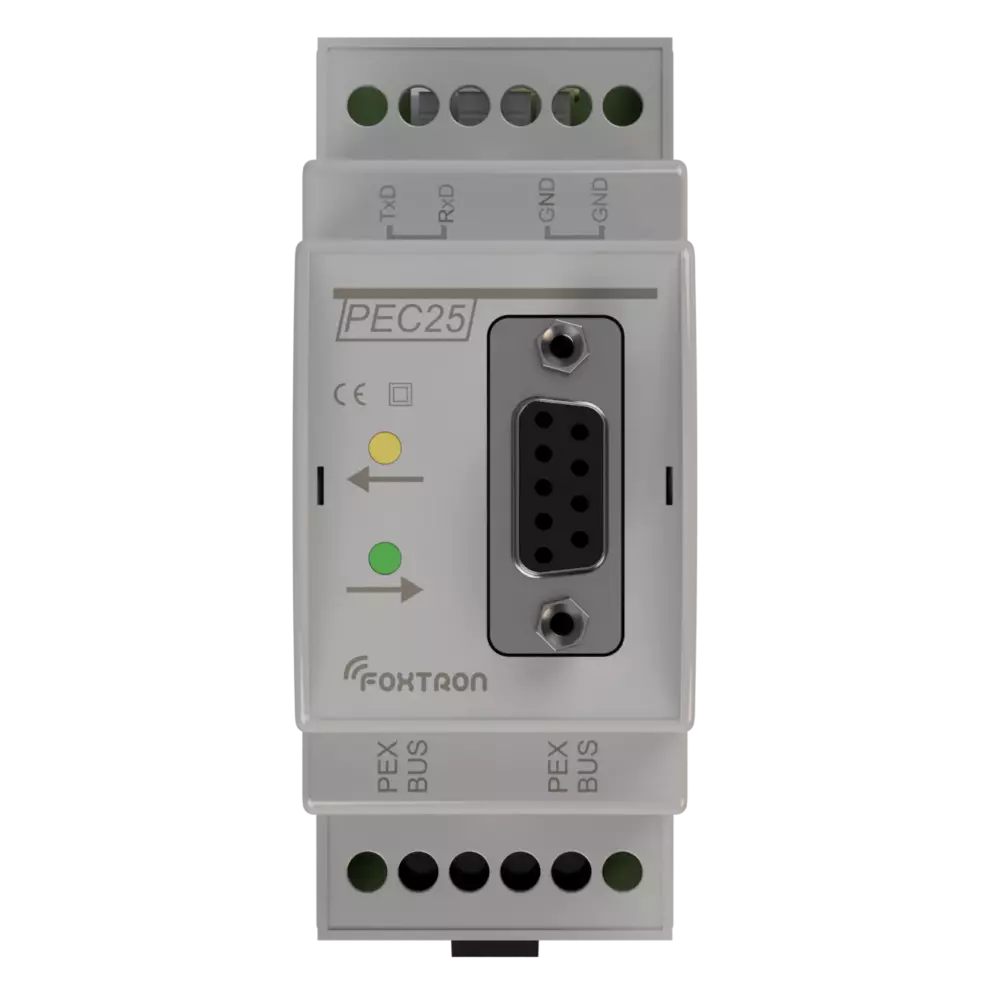

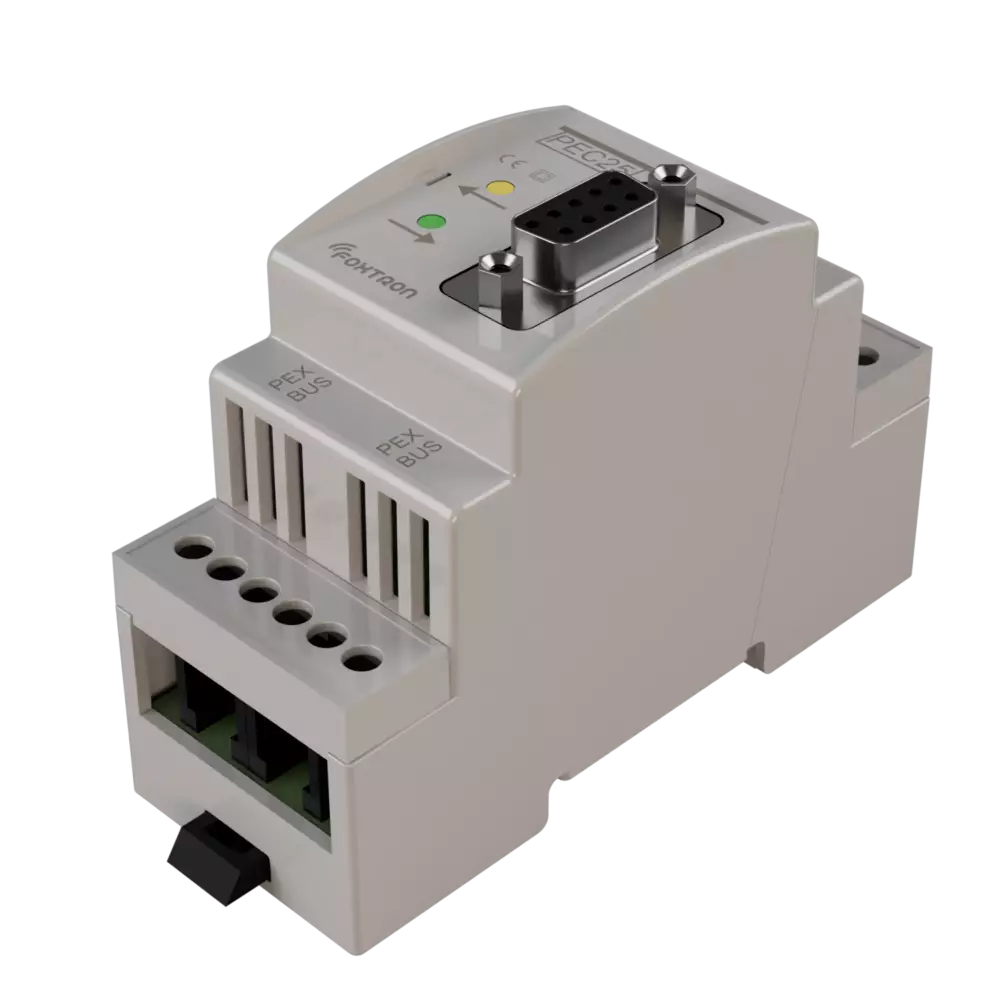

PEC25
- RS232 to RS485 converter (PEXbus)
- Automatic semi-duplex operation
- Transmission direction indication
- Power supply from PEX units
- Easy installation
- Transmission up to 19200 bps
Price incl. VAT:4 235 Kč
VAT excl.3 500 Kč
In stock
Converter RS232 - RS485
Data converter for bus RS232 and RS485. PEC25 automatic half-duplex operation.
RS485 has output on connector PEX bus and therefore is suitable for configuration of Power Express (PEX) system.
RS232 has output on terminal for connector free cable and also for standard connector serial line D-Sub DE-9.
On the front panel is data transfer direction indication.
Download
 |
Datasheet v1.7 |
|
Declaration of conformity |
